Description

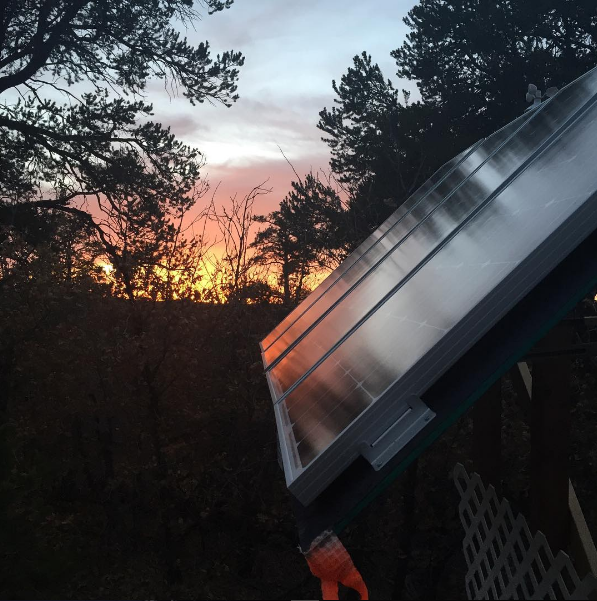

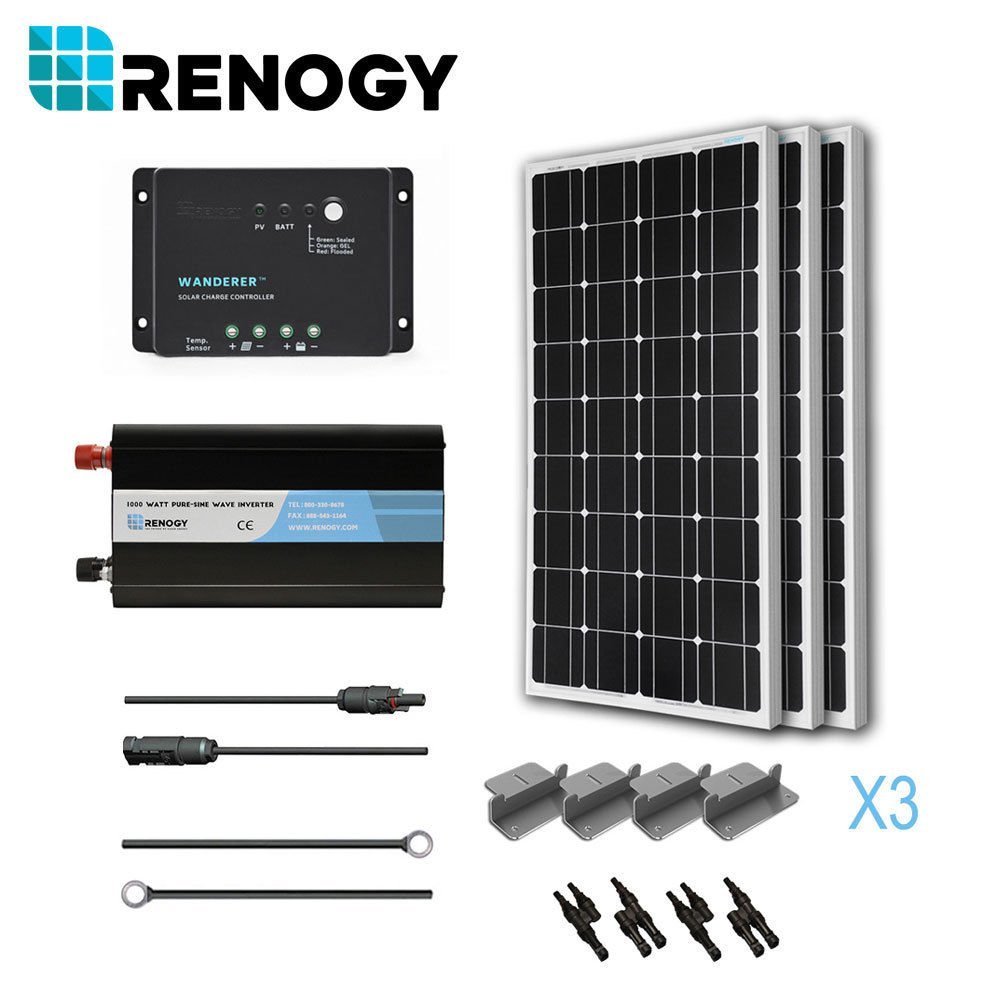

Renogy 100W Monocrystalline Solar Panel (Three panels)
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18.9V
Optimum Operating Current (Imp): 5.29A

30A Wanderer Charge Controller (Negative Grounded)
Rated Charge Current: 30A
Nominal Voltage: 12 VDC
Max. PV Input Voltage: 25 VDC
Self-Consumption: <10mA
High Voltage Disconnect: 16V
Over-Voltage Reconnect: 15V

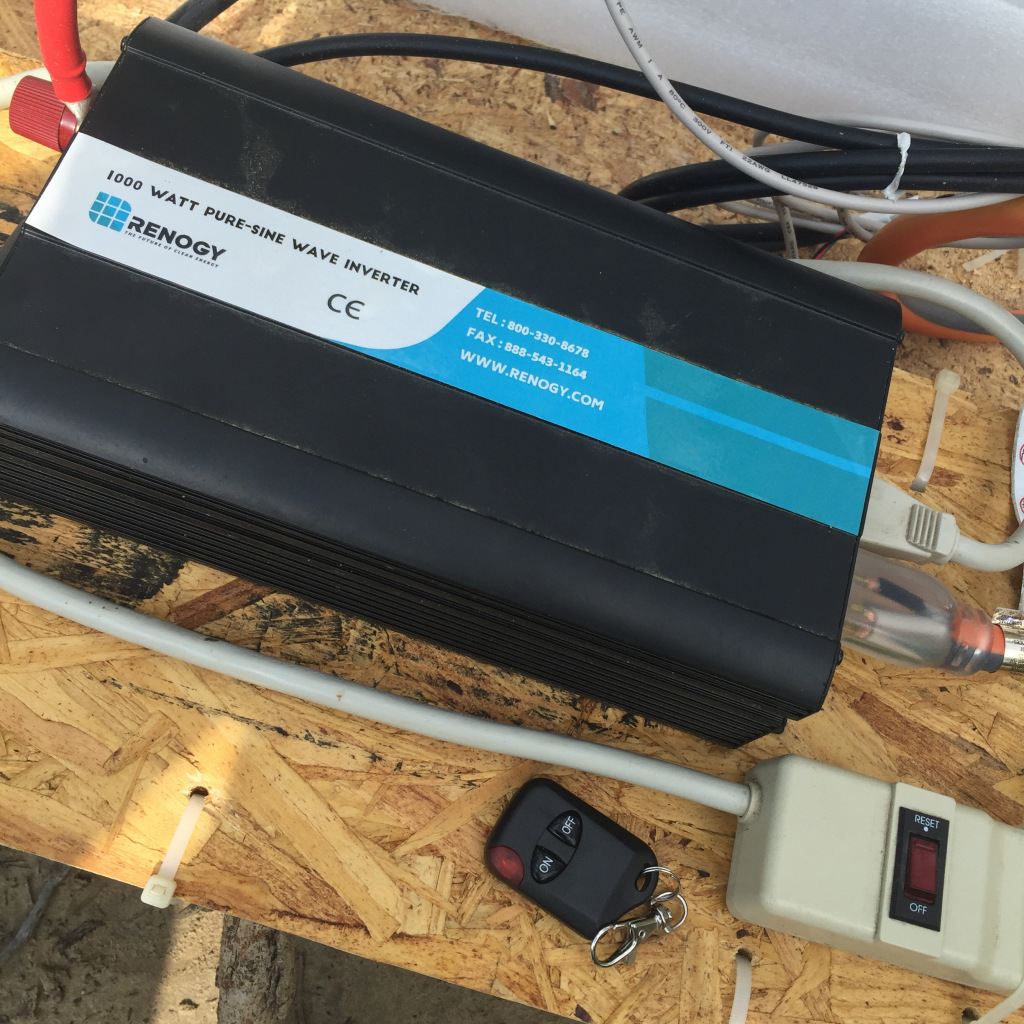

Renogy 1000W Off-Grid Inverter with Cables
Rated Power: 1000 W
Surge Power: 2000W
Rated Voltage: 12 VDC
Rated Voltage Range: 11-15V

Renogy Mounting Z Brackets (Three sets)
Renogy 20ft 10AWG MC4 Adaptor Kit (A pair)
Renogy 8ft 10AWG Tray Cables (A pair)
Renogy MC4 Branch Connectors (Two pairs)

>>Check out Trojan’s 12V 76Ah AGM Battery.

See how to expand this system at blog.sahaleeoffgrid.com.
